VSEZUND G22 Rechargeable Dog Training Collar User Manual

1. Introduction

The VSEZUND Rechargeable Dog Training Collar is a safe and effective tool designed to help you train your dog without causing harm. It features adjustable stimulation levels to ensure your pet’s comfort while discouraging unwanted behaviors. With a user-friendly design and multiple training modes, this collar is perfect for yard training, bark training, or training working dogs.

2. Specifications

• Dimensions: 6.1 x 5.75 x 2.24 inches
• Weight: 5.5 ounces
• Product Name: Dog Training Collar
• Model: GE-G21/GE-G22
• Material: ABS
• Battery Capacity:
  • Remote Control: 500mAh
  • Receiver: 350mAh
• Charging Voltage: 5V/1A
• Charging Time: 2 hours
• Charging Port: Type-C USB
• Operating Range: 2600 feet (barrier-free area)
• Remote Control Frequency: 433MHz FSK
• Operating Temperature: 32°F to 104°F (<95% RH)
• Standby Time:
  • Remote Control: 20 days
  • Receiver: 10 days
• Receiver Sensitivity: -126dBm
• Endurance: 6 hours of continuous use
• Waterproof Level: IPX7 (receiver only)

3. What’s in the Box

Your package includes the following components:

1. Training Remote
2. Training Receiver (Collar)
3. Type-C USB Charging Cable
4. Wrist Strap
5. Long and Short E-Shock Probes
6. User Manual
7. Test Unit & Probe Driver

Note: The shorter E-Shock probes are pre-installed on the collar.

4. Component Overview

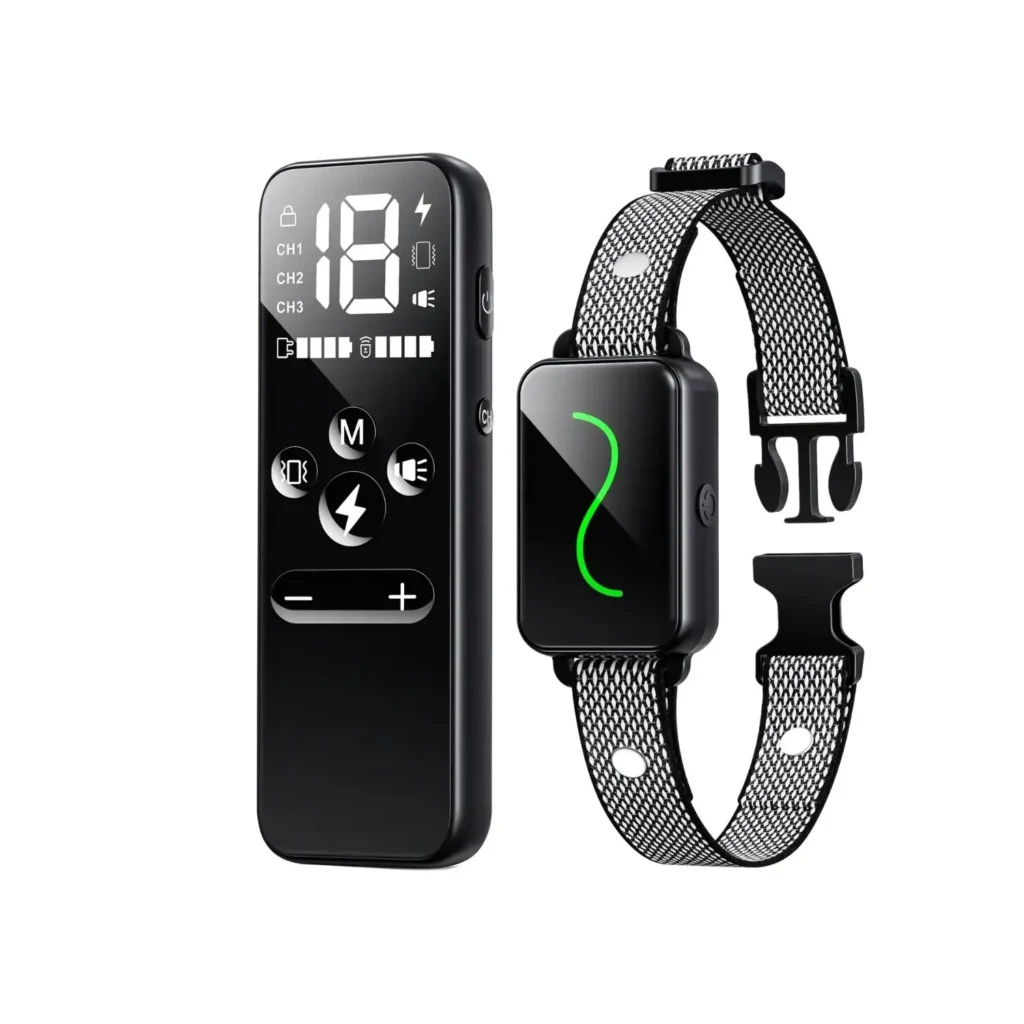

Training Remote

• CH Button: Switch between channels for multiple collars.
• Beep, Vibration, and Shock Buttons: Activate the respective training modes.
• Key Lock: Prevent accidental activation.
• Battery Indicator: Displays battery levels for both the remote and receiver.

Training Receiver (Collar)

• Power Button: Turn the receiver on/off and pair with the remote.
• E-Shock Probes: Deliver stimulation during training.
• Adjustable Strap: Fits dogs of various sizes.

5. How to Operate

Pairing the Remote and Receiver

1. Select a Channel: Press the CH button on the remote to choose the desired channel.
2. Activate Pairing Mode: Briefly press the receiver’s power button twice until the light turns blue and starts flashing.
3. Complete Pairing: Press any training button (Beep, Vibration, or Shock) on the remote. The blue light will turn off, indicating successful pairing.
4. Change Channels: Repeat the above steps to pair additional receivers to different channels.

6. Main Features

1. Three Training Modes:

   • Beep Mode: Fixed intensity, no level adjustment.
   • Vibration Mode: Adjustable intensity (1-8 levels).
   • E-Shock Mode: Adjustable intensity (0-18 levels).

2. 2600FT Range: Ideal for long-distance training in open areas.

3. Multi-Dog Training: Control up to 3 collars with one remote.

4. Dual Battery Display: Monitor the battery levels of both the remote and receiver.

5. Key Lock Function: Prevent accidental activation when stored in your pocket.

6. IPX7 Waterproof Receiver: Suitable for outdoor use, but not recommended for swimming.

7. Quick Charging: Fully charges in just 2 hours via Type-C USB.

7. Training Tips

Finding the Best Stimulation Level

1. Start at the lowest level (Level 1).
2. Press the E-Shock button for 1-2 seconds and observe your dog’s reaction (e.g., ear flicking, scratching, or looking around).
3. If there’s no response, gradually increase the level until your dog shows recognition.
4. Avoid using high levels unless absolutely necessary.

General Training Guidelines

• Use the collar in a safe and quiet environment.
• Combine training with verbal commands and hand gestures.
• Start with vibration mode before using E-Shock mode.
• Keep training sessions short and positive. Reward your dog for good behavior.
• If your dog shows discomfort, stop using the collar immediately.

8. Important Safety Information

1. Use the collar only on healthy dogs.
2. Do not use the collar on aggressive dogs.
3. Limit wearing time to less than 12 hours per day. Adjust the collar’s position every 2 hours to prevent skin irritation.
4. Never attach a leash to the receiver collar.
5. Avoid touching the E-Shock probes while the collar is active.
6. If your dog experiences discomfort or allergic reactions, discontinue use and consult a veterinarian.
7. This product is for training purposes only. Animal cruelty is strictly prohibited.

9. Certification Statements

This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.

Additionally, the product meets CE (2014/30/EU) and RoHS (2011/65/EU) standards. Unauthorized modifications may void compliance and warranty.

10. Frequently Asked Questions (FAQs)

Q: Is the static stimulation safe for my pet?
A: Yes, while the stimulation is unpleasant, it is completely safe and harmless.

Q: Why doesn’t my pet respond to the remote?
A: Ensure the collar is properly fitted and the probes are in contact with the skin. If necessary, increase the stimulation level.

Q: Can this collar be used on cats?
A: While it’s designed for dogs, it may work on cats with long hair if the probes are properly adjusted.

Q: How long does the battery last?
A: The remote lasts up to 20 days, and the receiver lasts up to 10 days on a full charge.

Q: Can I use this collar for swimming?
A: The receiver is waterproof (IPX7), but swimming is not recommended.

Q: Does the collar activate automatically when my dog barks?
A: No, you must manually press the remote buttons to activate training modes.

Conclusion

The VSEZUND Rechargeable Dog Training Collar is a versatile and effective tool for training your pet. By following this manual, you can ensure safe and successful training sessions. Remember to always prioritize your pet’s comfort and well-being during training.

For additional support or inquiries, feel free to contact our customer service team. Happy training!
